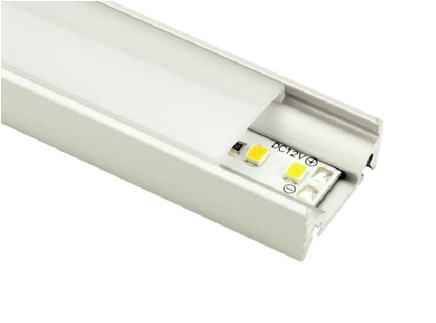

The light is used with high quality 2835 SMD leds of high brightness, vivid color, downy light, concise appearance and no glare; Energy saving and environment friendly without UV, infrared and mercury pollution. The light is made of aluminum alloy and PC, which make the product working more stable and safe, the lifespan can be up to 30,000 hours.
Widely used in residential lighting, supermarket, hotel, coffee bar, restaurant, office etc.

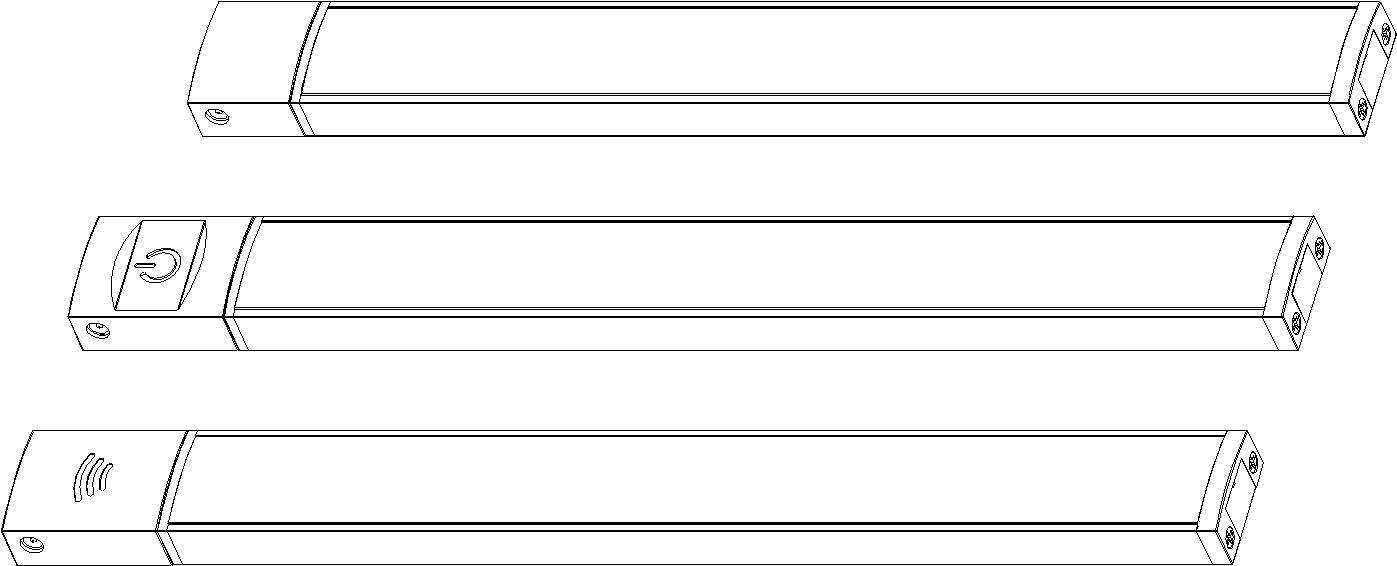

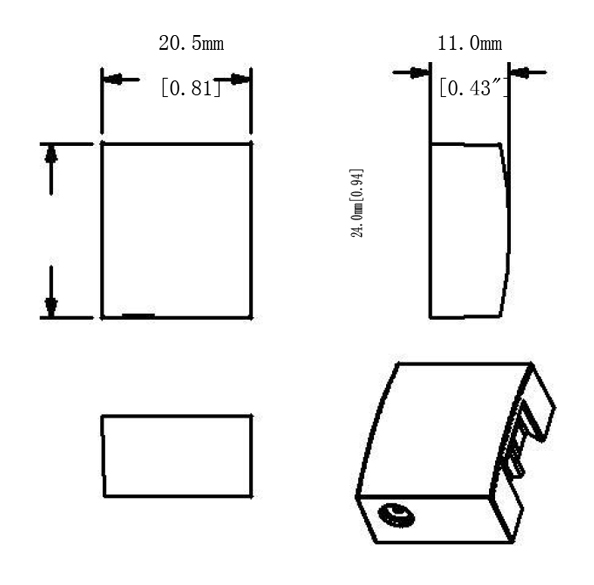

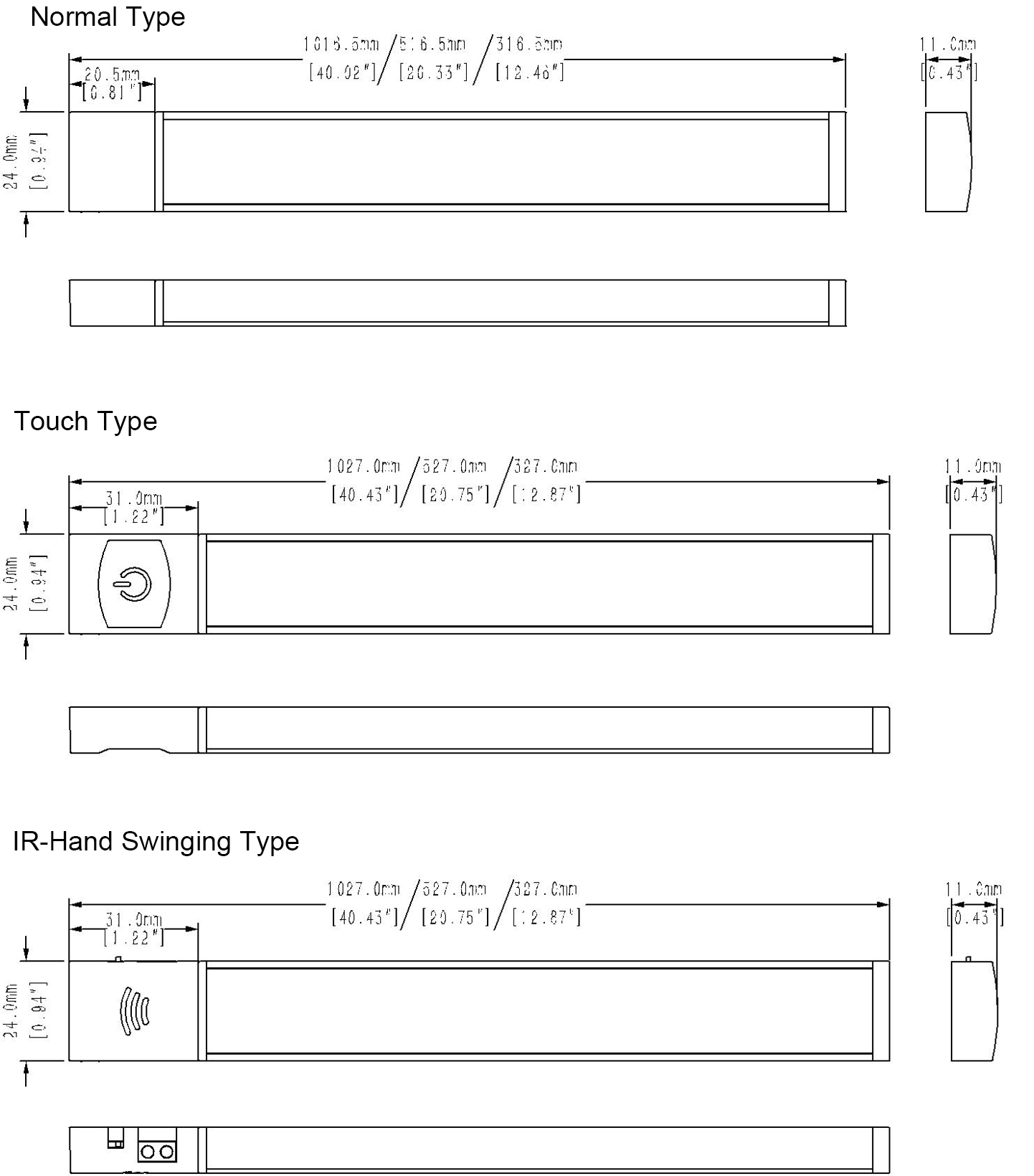

Normal Type
Touch Type

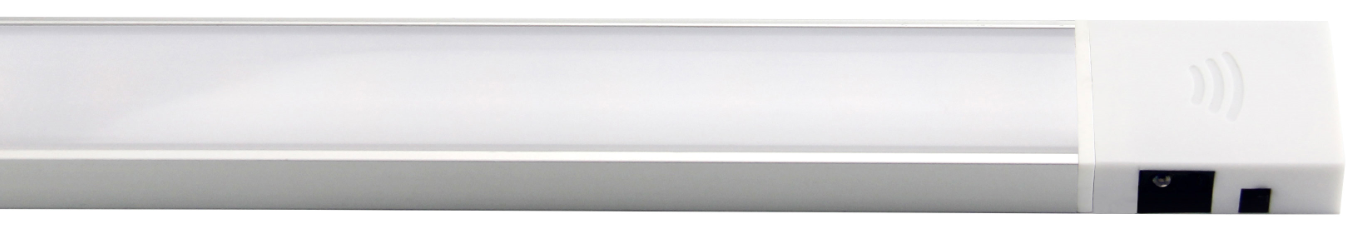

IR-Hand Swinging Type

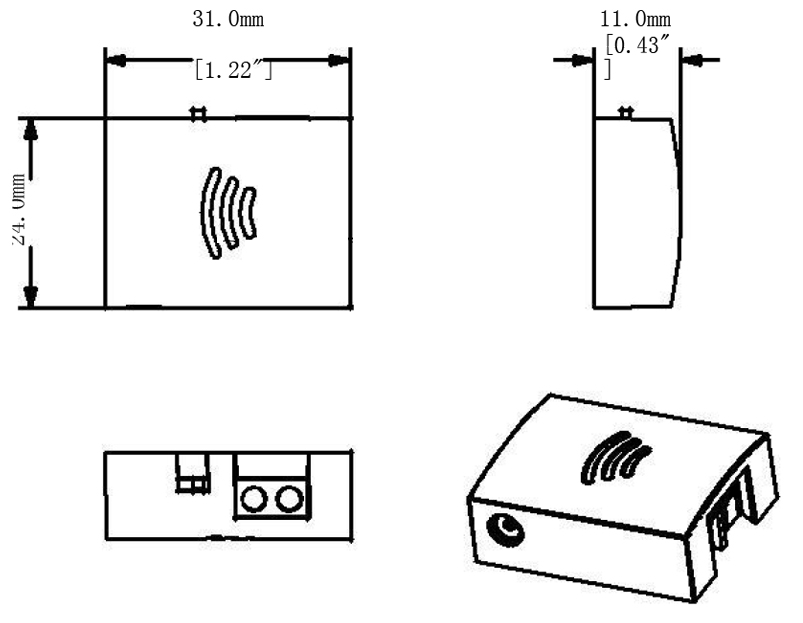

IR-Hand Swinging Type
Input Voltage：DC12V load current：2.5AMAX Max load power：30W Sensing distance：0-10cm
Function mode： Two modes, you can select by switch；
IR mode：When there is stopped object in 10cm range in front of sensor, the sensor can detect feedback
and control the circuit on/off. It will be kept till the second detect feedback and control the circuit off/on.
Hand swinging mode：When swing hand in 10cm range in front of sensor, the sensor can detect feedback and control the circuit on/off. It will be kept till the second detect feedback and control the circuit off/on.

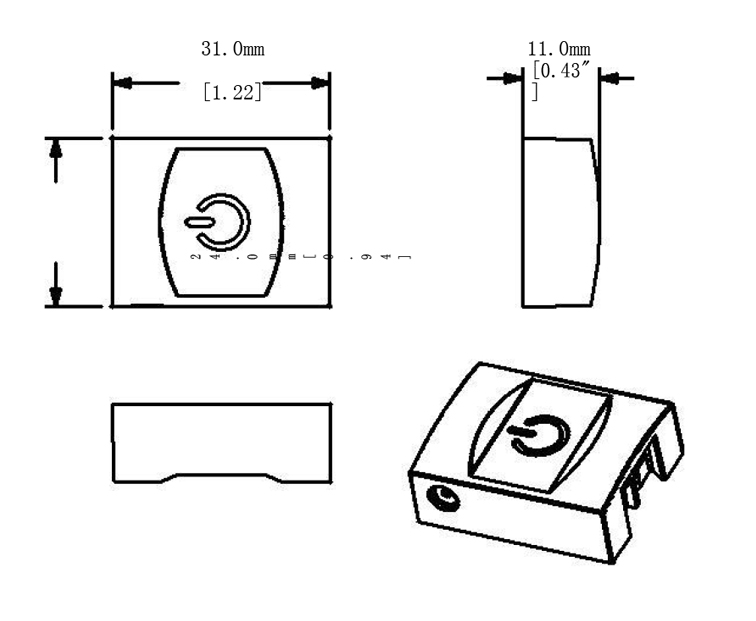

Touch Type
Input Voltage：DC12V load current：2.5AMAX Max load power：30W
FUNCTION： It's controlled by finger touch；with stepless dimming function.
Short Press to switch the light on/off
Long Press to adjust the brightness.
Model No | CCT | LED Typ | Lumen (LM) | Beam angle | CRI | Max Current | Power | Voltage | PF | Service Environment (℃) | Size (mm) |
LM-UL007-30 | 6000K | SMD2835 | 256 | 110° | 80 | 0.4A | 3.6W | 12V | 1.0 | -20~+45℃ | 300*24*11 (L*W*H) |
LM-UL007-30 | 4000K | SMD2835 | 245 | 110° | 80 | 0.4 A | 3.6W | 12V | 1.0 | -20~+45℃ | 300*24*11 (L*W*H) |
LM-UL007-30 | 3000K | SMD2835 | 235 | 110° | 80 | 0.4 A | 3.6W | 12V | 1.0 | -20~+45℃ | 300*24*11 (L*W*H) |
LM-UL007-50 | 6000K | SMD2835 | 435 | 110° | 80 | 0.6 A | 6W | 12V | 1.0 | -20~+45℃ | 500*24*11 (L*W*H) |
LM-UL007-50 | 4000K | SMD2835 | 418 | 110° | 80 | 0.6 A | 6W | 12V | 1.0 | -20~+45℃ | 500*24*11 (L*W*H) |
LM-UL007-50 | 3000K | SMD2835 | 400 | 110° | 80 | 0.6 A | 6W | 12V | 1.0 | -20~+45℃ | 500*24*11 (L*W*H) |
LM-UL007-100 | 6000K | SMD2835 | 887 | 110° | 80 | 1.2 A | 12W | 12V | 1.0 | -20~+45℃ | 1000*24*11 (L*W*H) |
LM-UL007-100 | 4000K | SMD2835 | 851 | 110° | 80 | 1.2 A | 12W | 12V | 1.0 | -20~+45℃ | 1000*24*11 (L*W*H) |
LM-UL007-100 | 3000K | SMD2835 | 816 | 110° | 80 | 1.2 A | 12W | 12V | 1.0 | -20~+45℃ | 1000*24*11 (L*W*H) |
Model | Carton Size | QTY/CTN | G.W． |
LM-UL007-30 | 640mm*140mm*185mm | 144PCS | 21KG |
LM-UL007-50 | 540mm*140mm*185mm | 77PCS | 18KG |
LM-UL007-100 | 1040mm*140mm*185mm | 77PCS | 31KG |
1.Please carefully make sure that the product is suitable for the installation site before use.
2.Take a note to the input voltage of product before use ;

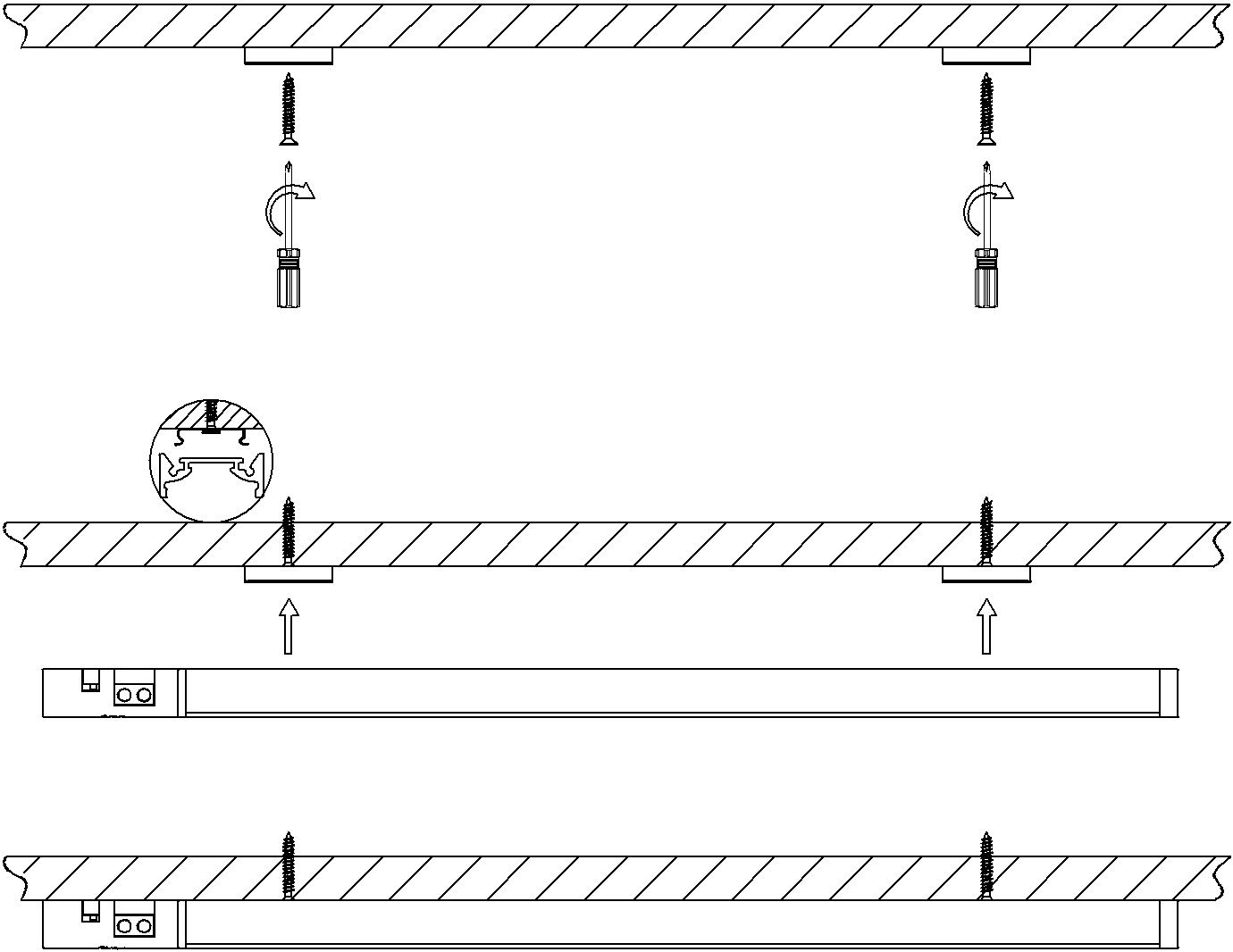

3. The light should be installed by professional technicians;
4. Stop using the product when the shell of the product is damaged;
5. Preliminarily estimate the quantity of LED lights required for using the proper power supply.
6. To avoid voltage shocking, unprofessional people are not allowed to maintain the products.
