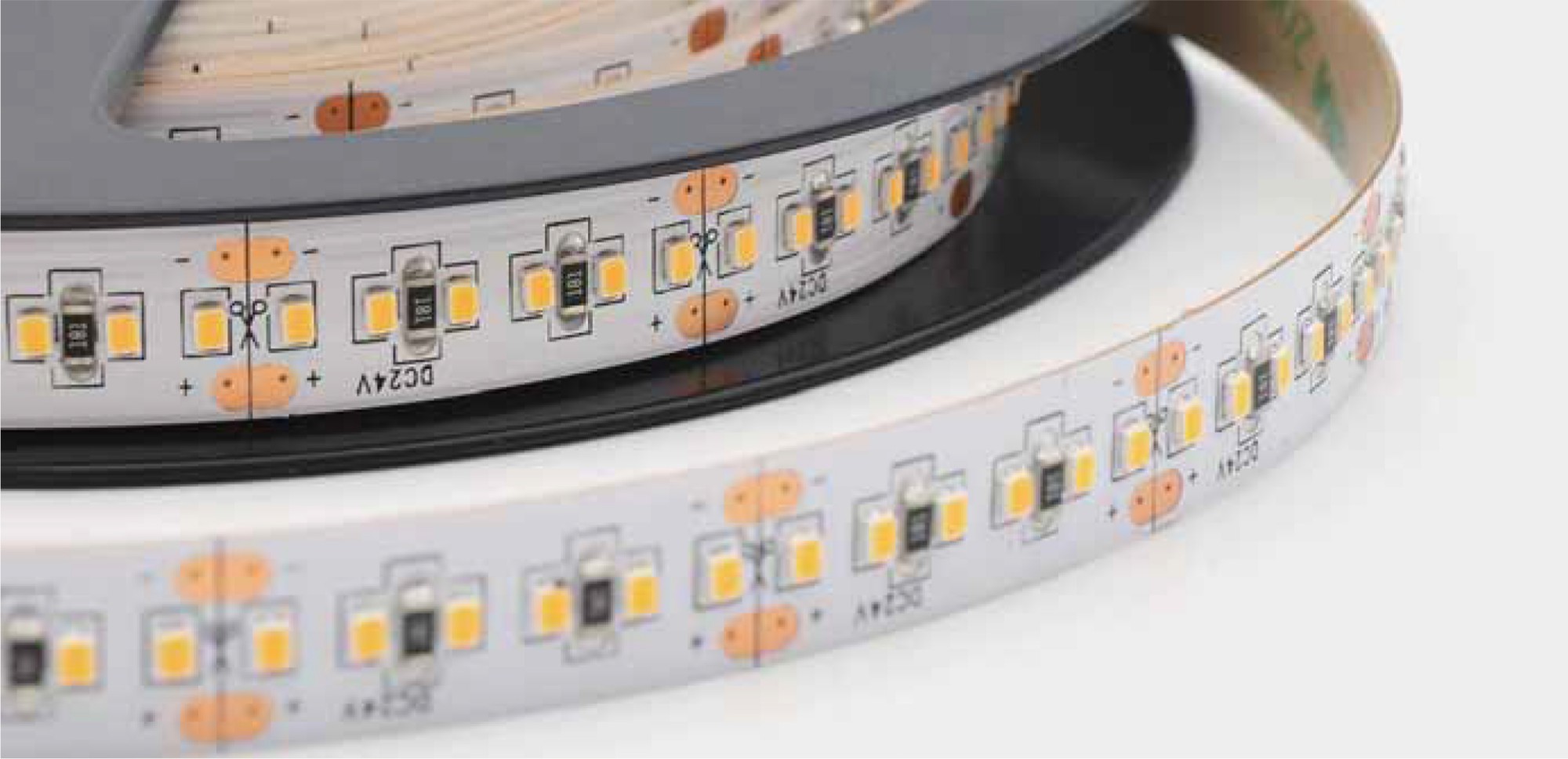

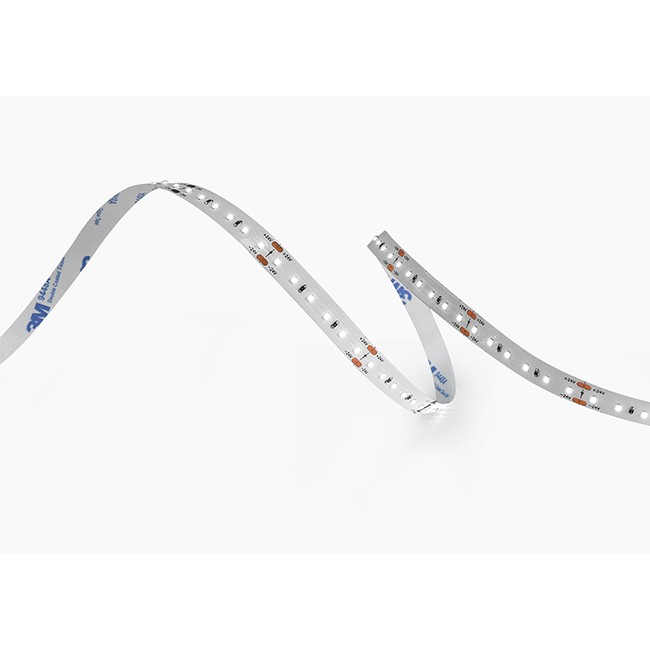

2116 24V LED Strip

2116 SMD LED is a newer SMD LED components much smaller and thinner than 3528 SMD LED, "2116" itself means this SMD LED component is about 2.1mm(L)X1.6mm(W). Because 2116 SMD LED have the back heat dissipation pad structure, it have the similar power and lumen output with normal 3528 SMD LED, even 2116 have a much more slim body. Normally, the most used 2116 CRI>90 SMD LED have only 1 chips inside, using a blue chip and the phosphor together to fabricate the white LED to output like 2700K, 3000K, 3500K, 4000K, 5000K, 6000K different white colors.

Product Parameters

Product drawing.jpg

Product feature and application

● One Bin, SDCM 2-3 available, CCT customized

● High CRI 90Ra, 95Ra, 97Ra

● Dimmable brightness

● 3Oz (4Oz) Copper layer Flex PCB

● 3M adhesive 9448A, VHB, red/ brown/ blue glue tape more sticky


Q: Can Speed Lighting  do custom assembly or offer OEM product?

A: Speed Lighting  has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.
